TLD Reader


TLD Reader


  • Processes all TLD dosimeters ‐ powder, chips, ribbons, pellets, disk, rods, and micro cubes, custom shapes.
  • Direct contact planchet heating for best heat transfer and accuracy. 9ms response time. Ir thermometry. Best in the industry.
  • Low cost bar coded Ni‐steel planchets. Not platinum, unless specified.
  • Bar coded planchet 600°C for custodial track of dosimeters. Only one in TLD dosimetry systems.
  • Planchets easily interchangeable by user simply pick one up and insert any other type in the drawer. NO VACUUMING!!!!
  • Weight input from electronic balance for powder sample correlation ‐ standard PC programmable powder vibrator 0 to 25 sec.
  • Bar code scanner & auto N2 shut off included as standard equipment. No hot gas heating, Save on N2 cost.
  • Display digitilized glow curve and temperature profiles‐ 10 nodes available for programming time temperature heating profiles.
  • Unlimited configuration and calibration for any unit of measurement.
  • Simple and accurate analysis. Verification for a built‐in quality control check.
  • Reference light source for real ‐ time PMT drift correction.
  • Dosimeter correction factor storage and automatic call ‐ up.
  • Internal micro processor (C/C++) RS 232 and USB Connection PC: operator in windows XP®, NT and windows 7 OS.
  • Automated drawer, PC controlled. Avoid costly Carpal ‐ tunnel workmen’s claims by operators.
  • Laptop or desktop control. Advanced GUI.

Specifications

Response Time. 9ms
Bar Coded Planchet 600°C
Powder Vibrator 0 to 25 sec.
Temperature Profiles 10 nodes
Internal Micro Processor (C/C++) RS 232
Operator Windows XP®, NT and Windows 7 OS

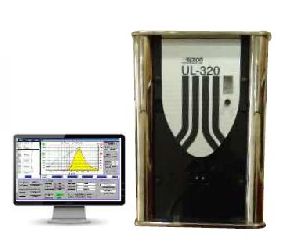

  • UL‐320 Automated Drawer Reader

  • Full Automated Reader

    Full Automated Reader

  • Manual Reader

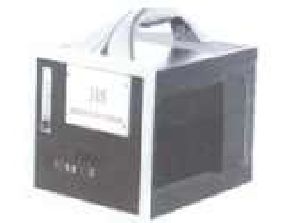

    Manual Reader

  • Powder Dispenser

    Powder Dispenser

  • Vacuum Twizer

    Vacuum Twizer
