SBRT Phantom


SBRT Phantom


The high dose per fraction associated with SBRT necessitates a high degree of accuracy in target localization and dose delivery. Small errors can result in significant under treatment of portions of the tumor volume and over dosages of nearby normal tissues. The E2E® SBRT Phantom provides a means to check the entire treatment chain during commissioning and routine QA.

The Model 036A‐CVXX‐xx* is an anthropomorphic thorax body containing articulated spine, ribs and lungs.

  • All materials are suitable for use in kV and MV energies.
  • Thorax with articulated spine, ribs and lungs
  • Optional Abdomen with Gafchromic Film insert
  • High Resolution Anthropomorphic Characterstics
  • Center point fiducial and offset target for daily system

Specifications

Dimensions 16.5 cm X 30 cm X 20 cm (6.5" x 11.8" x 7.9")
Weight ~7 kg (15 lb)
Materials Proprietary Epoxy Resins
Includes E2E® SBRT Phantom
Carrying and Storage Case
Optional Accessories Abdomen with Data Pack & 3D Spine, CBCT Image Quality Phantom
Warranty 48 Month


Dose Details

Dose Details

  • Transversal Slice and lung insert

  • Steev Stereotactic (SRS) Verification Phantom

    Steev Stereotactic (SRS) Verification Phantom

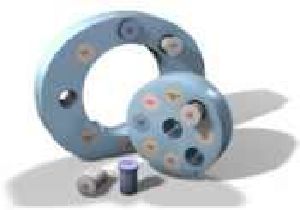

  • Electron Density Phantom

    Electron Density Phantom

  • Mini Phantom

    Mini Phantom

  • Shane Phantom Patient for VMAT & IMRT

    Shane Phantom Patient for VMAT & IMRT

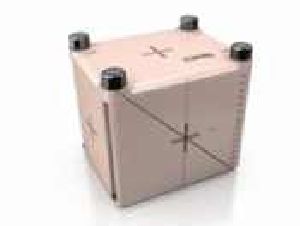

  • SRS Multi‐Lesion QA Phantom

    SRS Multi‐Lesion QA Phantom

  • Proton Therapy Dosimetry Head ‐ Tissue Equivalent

    Proton Therapy Dosimetry Head ‐ Tissue Equivalent

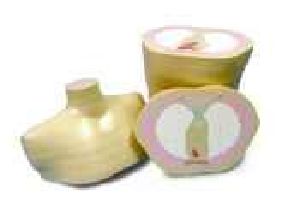

  • 3D Sectional Torso Phantom
